Geoffrey De Smet

Complex
scheduling and routing optimization
made easy

by Geoffrey De Smet

The world is full
of scheduling problems

For example

The world is full
of scheduling problems

Some are automated

Few are optimized

They use...

Excel

Drag and drop
Scheduling UI

Optimized for KPIs

Operations Research

Why are so few optimized?

Less than 5%

Technology problem?

30+ years

CPLEX 1.0 in 1988

ROI problem?

Vehicle routing case study

Expected: -1% driving time

Result: -25% driving time

⇒ -10 million kg CO² emission per year

-100 million $ cost per year

Reputation problem?

Yes

Too difficult

MATH

High risk

What we see

What management sees

Can we fix that?

Succeed more
❤️
Fail faster

Timefold mission

Free the world of wasteful scheduling

How?

Reduce risk

Easy to use

  • Solver
    • Open Source (Apache license)
  • REST APIs for
    • Field Service Routing
    • Employee Shift Scheduling
    • Job Scheduling
    • Pickup and Delivery Routing

Timefold Solver

Open source

Example Usecases

🚚 Vehicle Routing 🧑‍💼 Employee Scheduling
🛠️ Maintenance Scheduling 📦 Food Packaging
🛒 Order Picking 🏫 School Timetabling
🏭 Facility Location Problem 🎤 Conference Scheduling
🛏️ Bed Allocation Scheduling 🛫 Flight Crew Scheduling
👥 Meeting Scheduling Task Assigning
📆 Project Job Scheduling 🏆 Sports League Scheduling
🏅 Tournament Scheduling ...and many more

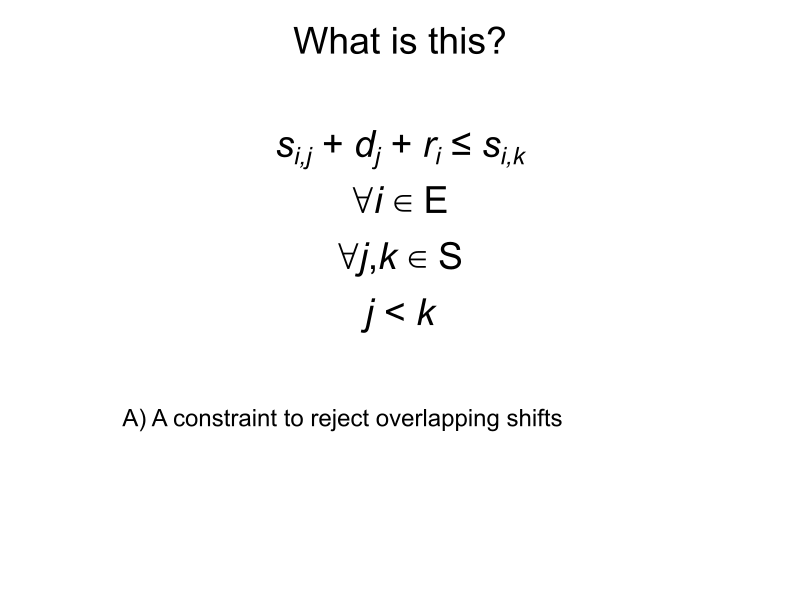

OR code (traditional)

javafor (int i = 0; i < numEmployees; i++) {
  for (int j = 0; j < numShifts; j++) {
    for (int k = j + 1; k < numShifts; k++) {
      model.addConstraint(
          LinearExpr.sum(new IntVar[]{s[i][j], d[j], r[i]})
          .leq(s[i][k])
      ).onlyEnforceIf(new IntVar[]{x[i][j], x[i][k]});
    }
  }
}

Why Ease of Use?

"We spend
10x more time reading
production code
than writing it."

Code should be
easy to read

Timefold Solver code

javaf.forEach(Shift.class)
  .join(Shift.class, equal(Shift::employee),
      lessThanOrEqual(Shift::end, Shift::start))
  .filter((shift1, shift2) ->
      Duration.between(shift1.end, shift2.start)
          .compareTo(shift1.employee.restDuration) < 0)
  .penalize(ONE_HARD)
  .asConstraint("Enough rest between shifts");

How many constraints?

A scaling problem

A real-word dataset (traditional)

  • 10k employees
  • 50k shifts
javafor (int i = 0; i < numEmployees; i++) { // 10k loop
  for (int j = 0; j < numShifts; j++) { // 50k loop
    for (int k = j + 1; k < numShifts; k++) { // 25k loop
      model.addConstraint(...).onlyEnforceIf(...);
    }
  }
}

2 500 000 000 000 CPU loops

2 500 000 000 000 constraints in memory

Out of memory error

A real-word dataset (Timefold)

  • 10k employees
  • 50k shifts
javaf.forEach(Shift.class)
  .join(Shift.class, equal(Shift::employee)) // ~250k tuples
  .filter() // 0-10 tuples
  .penalize(ONE_HARD)
  .asConstraint("Enough rest between shifts");

1 constraint

Only 250k tuples in memory

Lazy, incremental and indexed

How many solutions per second?

Check the Timefold log:

log08:27:00.867  INFO Solving started: ...
08:27:02.528  INFO Construction Heuristic ended: ...
                       move evaluation speed (39580/sec) ...
08:27:21.313  INFO Local Search ended: ...
                       move evaluation speed (101701/sec) ...
08:27:21.317  INFO Solving ended: ...
                       move evaluation speed (101461/sec) ...

It looks at 100 000 solutions per second

Incremental calculation

Why not plain java code?

If it isn't tested,
it doesn't work.

Unit testing

  • Given:
    • Ann at least 10 hours rest
    • Shift Monday 14:00-22:00 = Ann
    • Shift Tuesday 06:00-14:00 = Ann
  • Expected: penalty
javavar ann = new Employee("Ann", ...);

verifier.verifyThat(employeeMinimalRest)
 .given(ann,
        new Shift(mon1400, mon2200, ann),
        new Shift(tue0600, tue1400, ann))
 .penalizes());

Isolated per constraint

If it isn't documented,
it isn't used.

DEMO

docs.timefold.ai

🖊 Model domain

⚖️ Define constraints

🚀 Run!

Field Service Routing

REST API

Our Expertise in a box!

DEMO

app.timefold.ai

30+ constraints

Much more than
VRP with Time Windows

One example...

Maps integration

Real-time planning

Employee
Shift Scheduling

REST API

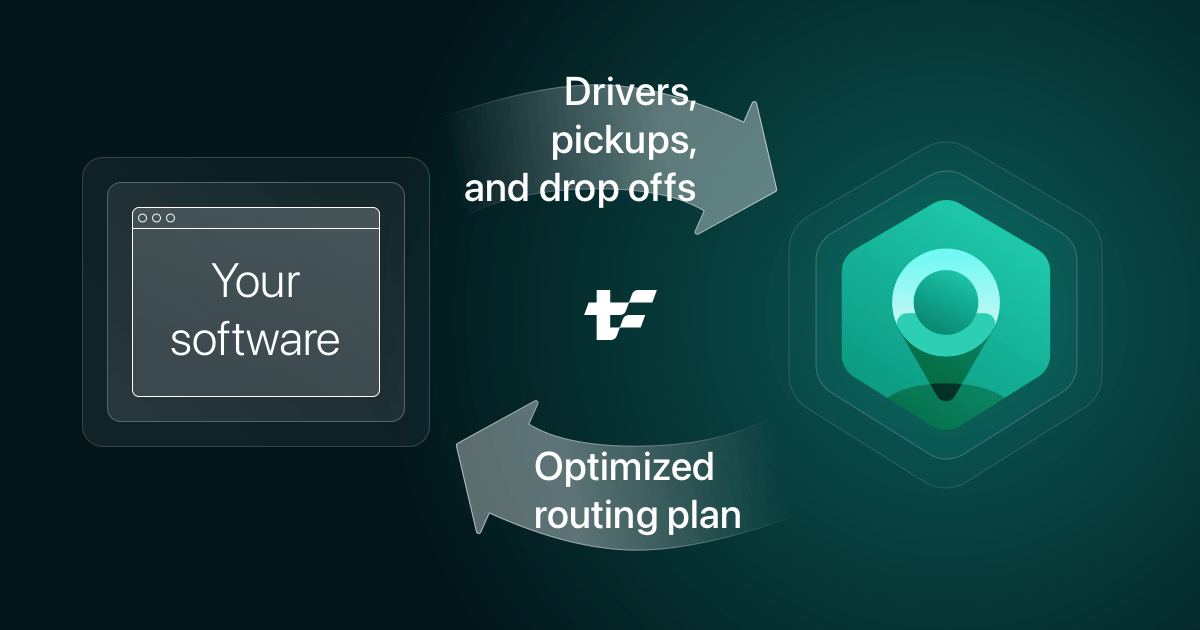

Pickup and Delivery Routing

REST API

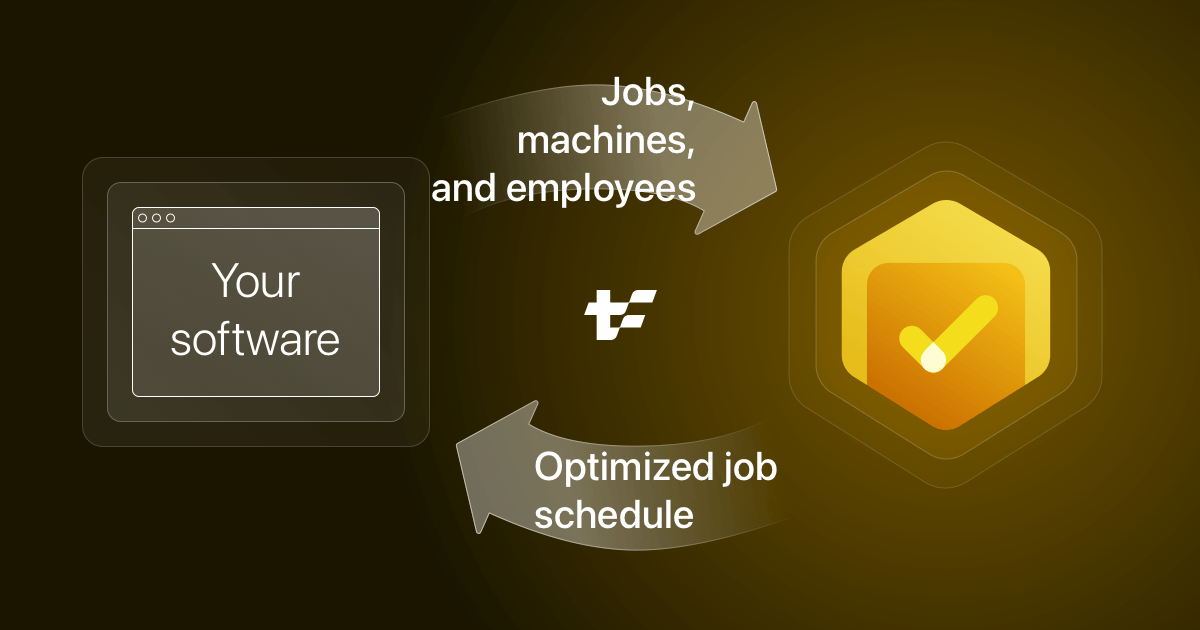

Job Scheduling

REST API

We call it ...

PlanningAI

Deliver faster

🖊 Model domain

⚖️ Define tune constraints

🚀 Run!

Free the world of wasteful scheduling

Join the PlanningAI revolution

Build your own model
on open source

  1. Go to solver.timefold.ai
  2. Click Run a quickstart button
  3. Run a quickstart
  4. Change it 🚀

Try our REST APIs

  1. Go to app.timefold.ai
  2. Request a free trial
  3. Solve your dataset

Contact us for assistance,
questions or self-hosting.

Q & A
